Bandknife Blades
The Single Bevel Single Edge blade is specifically designed for peeling and slicing tasks. It is frequently employed on horizontal cutting machines.
Available in: 2 & 4 TPI
The Concave Double Bevel Single Edge, also known as the Scalloped Edge, undergoes profile grinding to create a hybrid version combining attributes of the Knife Edge and the Serrated profile, resulting in superior cutting performance. This profile, widely recognized as the most popular choice, finds applications across various industries. It is employed on both horizontal and vertical cutting machines.
The Convex/Wavy-DBSE is a gentler and less aggressive alternative to the Concave/Scallop profile. It retains the advantages of a knife edge while allowing interrupted cutting without material tearing, thus minimizing dust generation. This profile is suitable for use with both horizontal and vertical cutting machines.
Available in: 6, 8, 10, 14 & 18 TPI
The V toothed pointed is a popular profile. This profile is aggressive as compared to the knife edge blade. Generates some dust. Good for cutting hard foams and helps in avoiding the sharpening mechanism on the cutting machine. Used on vertical, horizontal, carousel, and CNC machines.
Available in: 2, 4, 6, 8, 10 & 14 TPI
The Angle Toothed Double Bevel Single Edge is far more aggressive in its cutting action.
Available in: 4, 6, 8, 10 & 14 TPI

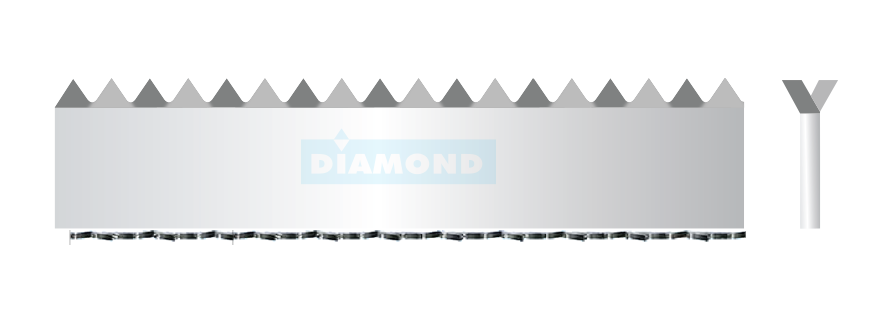

The Pointed V toothed All Tooth Set is an aggressive profile and is used in cutting rigid foam, very high density rebounded foam and abrasive pads. Used on vertical, horizontal and carousel machines.
Width in mm | Thickness in mm |
---|---|
20 | 0.45 / 0.50 / 0.60 / 0.70 |
25 | 0.45 / 0.50 / 0.60 / 0.70 |
30 | 0.45 / 0.50 / 0.60 / 0.70 |
40 | 0.50 / 0.60 / 0.70 |
50 | 0.50 / 0.60 / 0.70 / 0.80 / 1.00 |
60 | 0.60 / 0.70 / 0.80 / 1.00 |
Width in Inches | Thickness in Inches |
---|---|
0.787 | 0.017 / 0.019 / 0.023 / 0.027 |
0.984 | 0.017 / 0.019 / 0.023 / 0.027 |
1.181 | 0.017 / 0.019 / 0.023 / 0.027 |
1.574 | 0.019 / 0.023 / 0.027 |
1.968 | 0.019 / 0.023 / 0.027 / 0.031 / 0.039 |
2.362 | 0.023 / 0.027 / 0.031 / 0.039 |
